Technical Specifications
Apex PA10M technical specifications.
General
Amplifier Type
POWER
Package/Case
TO-3-8
Gain Bandwidth Product
4MHz
Input Bias Current
12nA
Input Offset Voltage (Vos)
2mV
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Circuits
1
Operating Supply Current
15mA
Output Current per Channel
5A
RoHS Compliant
No
Series
Apex Precision Power®
Slew Rate
3V/µs
Compliance
RoHS
Not Compliant
Datasheet
Apex PA10M Datasheet
Download the complete datasheet for Apex PA10M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

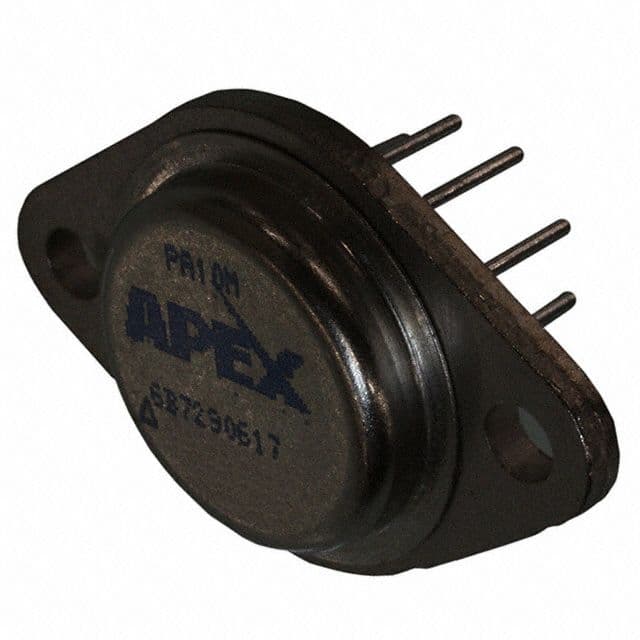

Product Images
