Apex

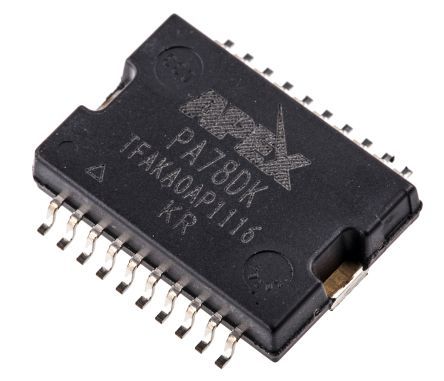

PA78DK

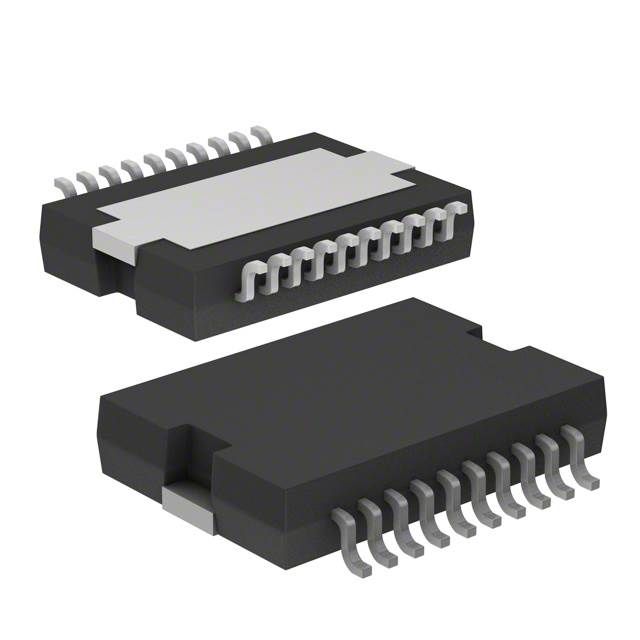

Operational Amplifier, 1 Func, 40000uV Offset-Max, PDSO20, ROHS COMPLIANT, PLASTIC, SOP-20
MountingSurface Mount
Quick Jump:
Technical Specifications
Apex PA78DK technical specifications.
General
Amplifier Type
POWER
Gain Bandwidth Product
1MHz
Input Bias Current
8.5pA
Input Offset Voltage (Vos)
8mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
1
Operating Supply Current
700uA
Output Current per Channel
150mA
Package Quantity
30
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
Apex Precision Power®
Slew Rate
350V/µs
Compliance
RoHS
Compliant
Datasheet
Apex PA78DK Datasheet
Download the complete datasheet for Apex PA78DK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
