Technical Specifications
Apex PA91 technical specifications.
General
Amplifier Type
POWER
Package/Case
SIP
Gain Bandwidth Product
100MHz
Input Bias Current
200pA
Input Offset Voltage (Vos)
500uV
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Number of Circuits
1
Operating Supply Current
10mA
Output Current per Channel
200mA
Package Quantity
1
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
Apex Precision Power®
Slew Rate
300V/µs
Compliance
RoHS
Compliant
Datasheet
Apex PA91 Datasheet
Download the complete datasheet for Apex PA91 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

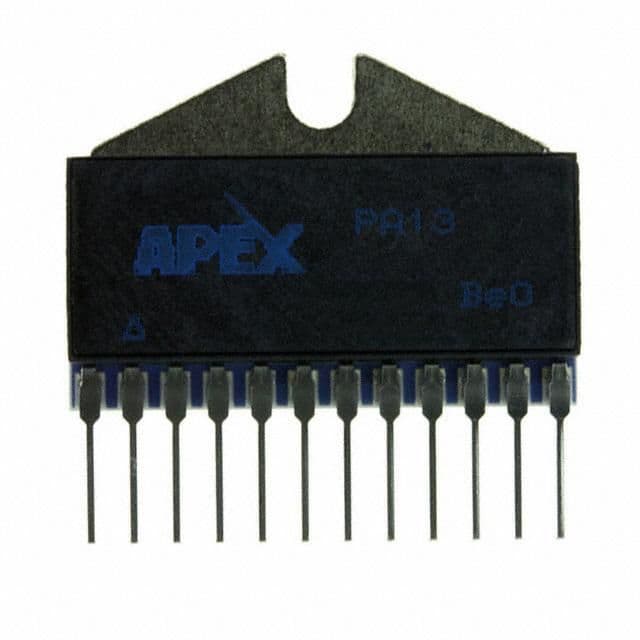

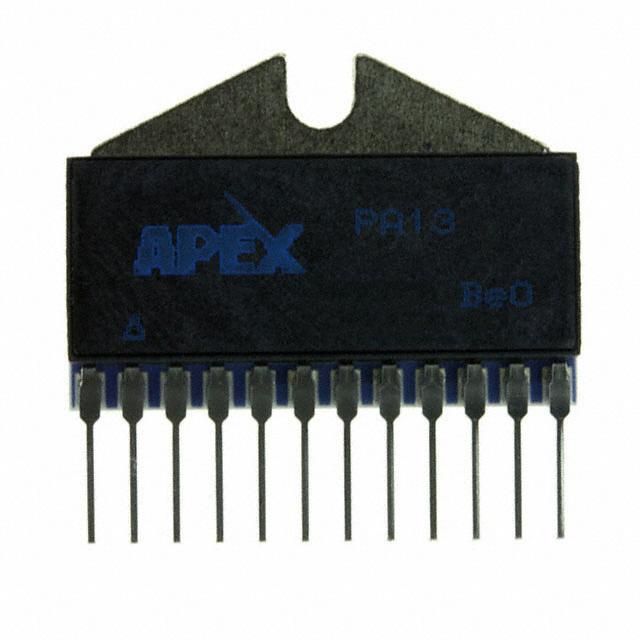

Product Images
