Technical Specifications
API Delevan 4221-1 technical specifications.
General
| Package/Case | SMD/SMT |
| Core Material | Ferrite |
| Depth | 3mm |
| Height | 3.05mm |
| Impedance | 47R |
| Lead Free | Contains Lead |
| Length | 0.197inch |
| Max Current Rating | 5A |
| Max DC Current | 5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Lines | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | No |
| Series | 4221 |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Width | 0.12inch |
Compliance
| RoHS | Not Compliant |
Datasheet
API Delevan 4221-1 Datasheet
Download the complete datasheet for API Delevan 4221-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

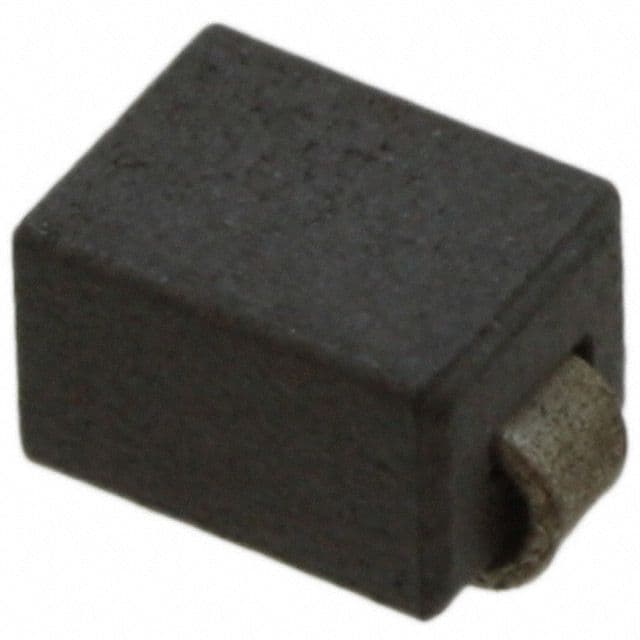

Product Images
