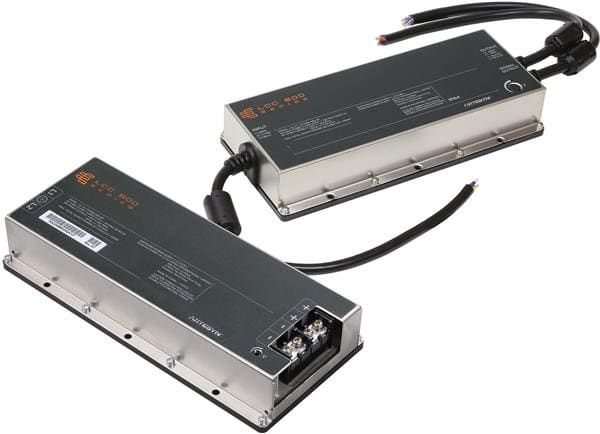

The Artesyn LCC600-12U-9P is a 600W AC/DC power supply with a single 12V output and 50A maximum output current. It operates within a temperature range of -40°C to 85°C and features PMBus and I²C interfaces. The supply is isolated to 4kV and has a high efficiency of 93%. It is available in a chassis mount package quantity of 24 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Artesyn LCC600-12U-9P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Artesyn LCC600-12U-9P technical specifications.
| Current - Output 1 | 50A |
| Efficiency | 93% |
| Features | PMBus, I²C |
| Height | 39.8mm |
| Isolation Voltage | 4kV |
| Length | 228mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50A |
| Max Output Power | 600W |
| Max Power Dissipation | 600W |
| Mount | Chassis Mount |
| Number of Outputs | 1 |
| Output Power | 600W |
| Output Voltage | 12V |
| Package Quantity | 24 |
| Series | LCC600 (600W) |
| Voltage - Output 1 | 12V |
| Width | 101mm |
| RoHS | Not Compliant |
Download the complete datasheet for Artesyn LCC600-12U-9P to view detailed technical specifications.
