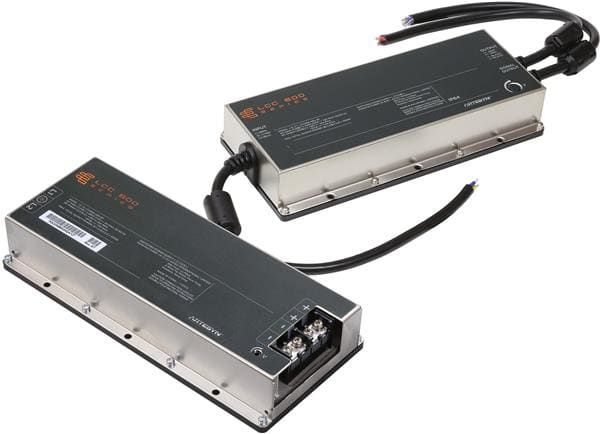

600W AC/DC converter, 28V output voltage, 21.4A maximum output current. Features PMBus and I²C interfaces, 93.5% efficiency, and 4kV isolation voltage. Operates across a wide temperature range from -40°C to 85°C, with AC input voltage from 90V to 264V. Chassis mount design with dimensions of 228mm length, 101mm width, and 39.8mm height. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Artesyn LCC600-28U-9P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 21.4A |
| Efficiency | 93.5% |
| Features | PMBus, I²C |
| Height | 39.8mm |
| Isolation Voltage | 4kV |
| Length | 228mm |
| Max Current Rating | 5.6A |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 90V |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 21.4A |
| Max Output Power | 600W |
| Max Power Dissipation | 600W |
| Mount | Chassis Mount |
| Number of Outputs | 1 |
| Output Power | 600W |
| Output Voltage | 28V |
| Package Quantity | 24 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LCC600 (600W) |
| Voltage - Output 1 | 28V |
| Width | 101mm |
| RoHS | Compliant |
