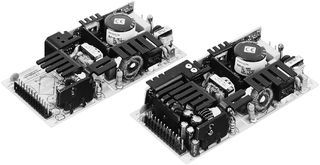

Triple-output AC/DC power supply delivering 5V at 4A, 15V at 1.6A, and -15V at 0.2A, with a total output power of 50W. Features 3kV isolation voltage, 75% efficiency, and operates from 90-264V AC input. Chassis mountable with dimensions of 107.95mm (L) x 63.5mm (W) x 29.21mm (H). Approvals include CSA, VDE, and CE, with an operating temperature range of 0°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Artesyn NLP40-7610J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CSA, VDE, CE |
| Current - Output 1 | 4A |
| Current - Output 2 | 1.6A |
| Current - Output 3 | 200mA |
| Depth | 63.5mm |
| Efficiency | 75% |
| Height | 1.15inch |
| Isolation Voltage | 3kV |
| Length | 107.95mm |
| Max Frequency | 440Hz |
| Min Frequency | 47Hz |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 90V |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.6A |
| Max Output Power | 50W |
| Max Power Dissipation | 40W |
| Max Supply Voltage | 264V |
| Min Supply Voltage | 90V |
| Mount | Chassis Mount, Screw, Chassis |
| Nominal Output Voltage | -15V |
| Number of Outputs | 3 |
| Output Current | 4A |
| Output Power | 50W |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | NLP40 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Weight | 7.04oz |
| Width | 63.5mm |
| RoHS | Compliant |
