Technical Specifications
Artesyn SIL05E-05W3V3-HJ technical specifications.
General
| Package/Case | SIL |
| Current - Output 1 | 5A |
| Efficiency | 94% |
| Features | OTP, SCP |
| Height | 0.4inch |
| Length | 0.9inch |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Power Dissipation | 18W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Power | 18.15W |
| Output Voltage | 3.63V |
| Package Quantity | 168 |
| Packaging | Tray |
| Radiation Hardening | No |
| Series | SIL05E |
| Voltage - Output 1 | 3.63V |
| Width | 0.28inch |
Compliance
| RoHS | Compliant |
Datasheet
Artesyn SIL05E-05W3V3-HJ Datasheet
Download the complete datasheet for Artesyn SIL05E-05W3V3-HJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

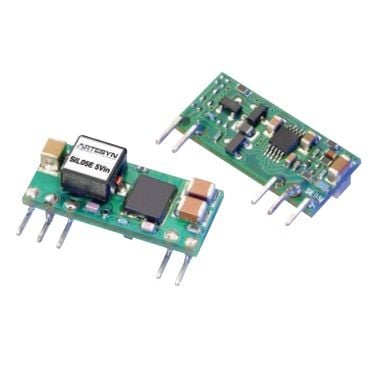

Product Images
