Board mount, non-isolated DC-DC converter with a single 3.63V output at 10A. Features a wide input voltage range of 4.5V to 5.5V and operates efficiently up to 95%. This compact unit offers protection against over-temperature (OTP) and short-circuit (SCP), with an operating temperature range of -40°C to +100°C. Dimensions are 50.8mm (length) x 12.7mm (width) x 7.8mm (depth).
PackageSIL
MountingThrough Hole
Power36.3W
Quick Jump:
Technical Specifications
Artesyn SIL10E-05W3V3-HJ technical specifications.
General
| Package/Case | SIL |
| Current - Output 1 | 10A |
| Depth | 7.8mm |
| Efficiency | 95% |
| Features | OTP, SCP |
| Height | 0.49inch |
| Isolation | Non-Isolated |
| Length | 50.8mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10A |
| Max Power Dissipation | 36W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 10A |
| Output Power | 36.3W |
| Output Voltage | 3.63V |
| Package Quantity | 84 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SIL10E |
| Voltage - Output 1 | 3.63V |
| Width | 0.5inch |
Compliance
| RoHS | Compliant |
Datasheet
Artesyn SIL10E-05W3V3-HJ Datasheet
Download the complete datasheet for Artesyn SIL10E-05W3V3-HJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

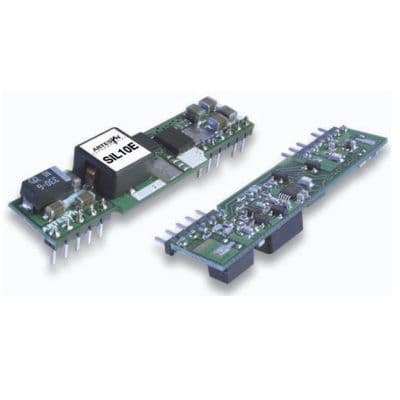

Product Images
