Board mount DC/DC converter, 15A output current, 3.63V output voltage, and 49.5W output power. Features a 10-14V input voltage range with a nominal input of 12V. Achieves 94% efficiency and operates across a -40°C to 85°C temperature range. Includes over-temperature protection (OTP) and short-circuit protection (SCP). Packaged in a vertical SIP with through-hole mounting.
PackageSIP
MountingThrough Hole
Power49.5W
Quick Jump:
Technical Specifications
Artesyn SIL15E-12W3V3-VJ technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 15A |
| Depth | 12.7mm |
| Efficiency | 94% |
| Features | OTP, SCP |
| Height | 0.5inch |
| Length | 2inch |
| Max Input Voltage | 14V |
| Min Input Voltage | 10V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 15A |
| Max Power Dissipation | 50W |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 15A |
| Output Power | 49.5W |
| Output Voltage | 3.63V |
| Package Quantity | 84 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SIL15E |
| Voltage - Output 1 | 3.63V |
| Width | 0.31inch |
Compliance
| RoHS | Compliant |
Datasheet
Artesyn SIL15E-12W3V3-VJ Datasheet
Download the complete datasheet for Artesyn SIL15E-12W3V3-VJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

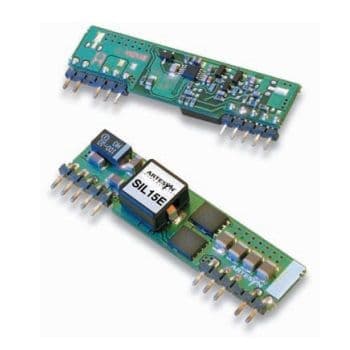

Product Images
