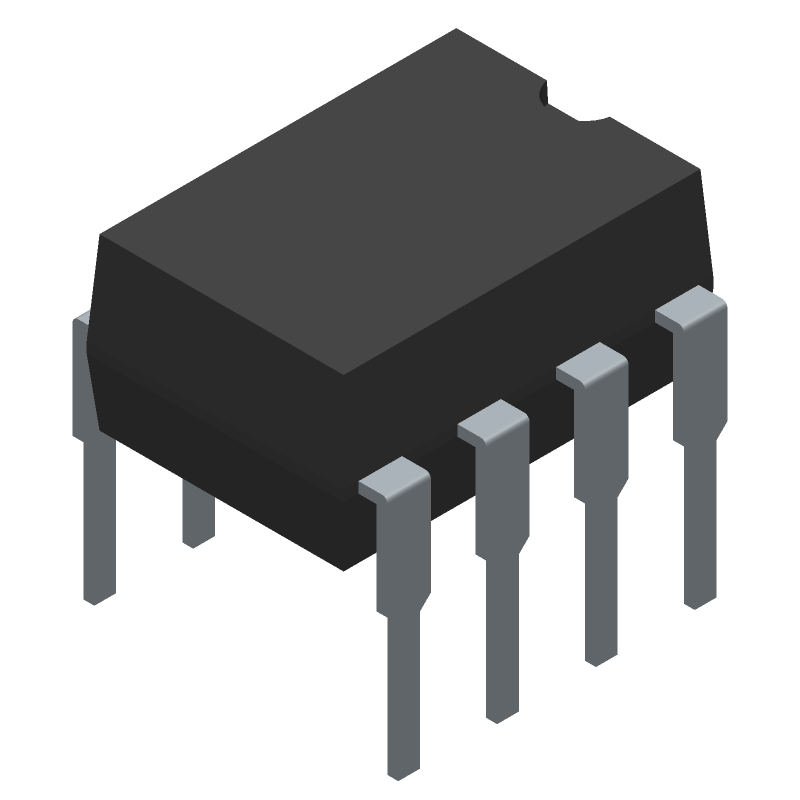

8-bit RISC microcontroller featuring an AVR RISC CPU operating at a maximum clock frequency of 20MHz. This CMOS device offers 4096 words of FLASH program memory and 512 bytes of RAM. It includes 6 I/O lines, PWM channels, and an ADC, with a supply voltage range of 4.5V to 5.5V. Packaged in an 8-terminal PDIP with a width of 7.62mm and length of 9.271mm, it is rated for industrial temperature operation from -40°C to 85°C.
Frequency20
Quick Jump:
Technical Specifications
Atmel ATTINY85-20PU technical specifications.
General
Max Operating Temperature
85
Number of Terminals
8
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
R-PDIP-T8
Width
7.62
Length
9.271
Pin Count
8
Temperature Grade
INDUSTRIAL
Supply Current-Max
8
Supply Voltage-Nom
5
Supply Voltage-Min
4.5
Supply Voltage-Max
5.5
Clock Frequency-Max
20
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of I/O Lines
6
External Data Bus Width
0
Address Bus Width
0
Bit Size
8
Speed
20
ROM Programmability
FLASH
ROM (words)
4096
RAM (bytes)
512
PWM Channels
YES
Has ADC
YES
DMA Channels
NO
DAC Channels
NO
Compliance
RoHS
Yes
Eccn Code
EAR99
Lead Free
Yes
HTS Code
8542.31.00.01
REACH
unknown
Military Spec
False
Datasheet
Atmel ATTINY85-20PU Datasheet
Download the complete datasheet for Atmel ATTINY85-20PU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
