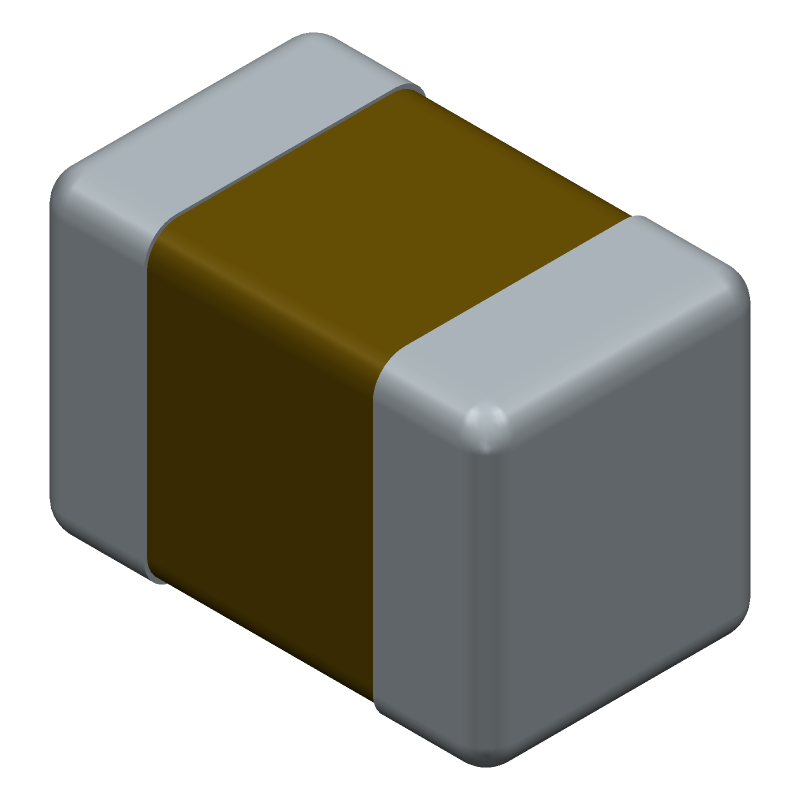

Multilayer Ceramic Capacitor, 0.1 µF capacitance, 100 V DC rated voltage, X7R dielectric, 10% tolerance. Features a 2-terminal surface-mount design with a 0805 package size, measuring 2.01 mm in length and 1.25 mm in width. Operates across a temperature range of -55°C to 125°C, with a maximum height of 1.52 mm.
Capacitance0.1
Quick Jump:
Technical Specifications
AVX 08051C104KAZ2A technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Width | 1.25 |
| Length | 2.01 |
| Capacitance | 0.1 |
| Capacitor Type | CERAMIC CAPACITOR |
| DC Rated Voltage | 100 |
| Height | 1.52 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8532.24.00.20 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
AVX 08051C104KAZ2A Datasheet
Download the complete datasheet for AVX 08051C104KAZ2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
