Bench power supply featuring a single output adjustable from 0V to 30V with a maximum current of 3A. Offers two additional fixed outputs: 12V at 500mA and 5V at 500mA. Total output power is 165W. Equipped with an LCD display for clear voltage and current readings. Designed for desktop mounting, operating within a temperature range of 0°C to 40°C.
MountingDesktop
Power165W
Quick Jump:
Technical Specifications
B&K Precision 1670A technical specifications.
General
| Current - Output 1 | 3A |
| Current - Output 2 | 500mA |
| Current - Output 3 | 500mA |
| Display Type | LCD |
| Height | 8.5inch |
| Length | 9.5inch |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 0°C |
| Mount | Desktop |
| Number of Outputs | 3 |
| Output Current | 3A |
| Output Power | 165W |
| Output Voltage | 30V |
| Series | 1670 |
| Voltage - Output 1 | 30V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | 5V |
| Weight | 12lb |
| Width | 4.9inch |
| Wire/Cable Type | Power Cord |
Compliance
| RoHS | Not Compliant |
Datasheet
B&K Precision 1670A Datasheet
Download the complete datasheet for B&K Precision 1670A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

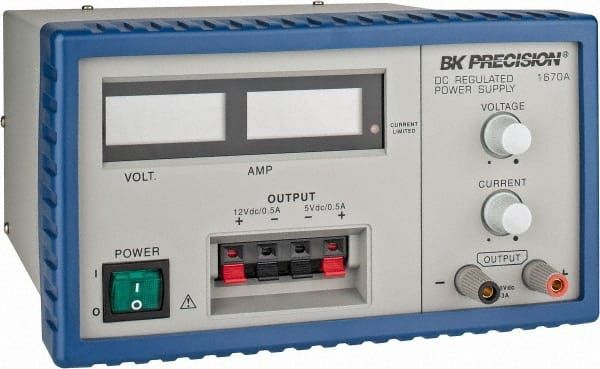

Product Images
