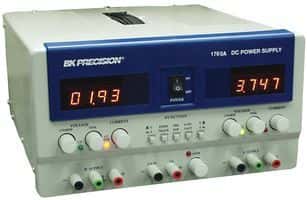

Triple output benchtop power supply offering 350W total output power. Features three independent outputs: two with 0-30V at 2A each, and one with 0-6.5V at 5A. Dual digital displays provide clear voltage and current readings. Designed for desktop mounting, this unit measures 10.5 inches wide, 15 inches long, and 5.7 inches high, weighing 24 pounds. Includes a power cord for operation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the B&K Precision 1760A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 2A |
| Current - Output 2 | 2A |
| Current - Output 3 | 5A |
| Display Type | Dual |
| Height | 5.7inch |
| Length | 15inch |
| Mount | Desktop |
| Number of Outputs | 3 |
| Output Current | 5A |
| Output Power | 350W |
| Output Voltage | 30V |
| Series | 1760A |
| Voltage - Output 1 | 30V |
| Voltage - Output 2 | 30V |
| Voltage - Output 3 | 6.5V |
| Weight | 24lb |
| Width | 10.5inch |
| Wire/Cable Type | Power Cord |
| RoHS | Not Compliant |
Download the complete datasheet for B&K Precision 1760A to view detailed technical specifications.
