The BK2542 is a 2-channel digital oscilloscope with a sampling rate of 1GS/s and 8-bit resolution. It operates from a USB interface and can handle a maximum input voltage of 400V. The oscilloscope measures 310mm wide and 147mm high, and weighs 3.6kg. It is designed for use in test and measurement applications, and is part of the 254x series.
Resistance1000000R
Quick Jump:
Technical Specifications
B&K Precision BK2542 technical specifications.
General
| Accuracy | 3% |
| Bandwidth | 100MHz |
| Height | 147mm |
| Input Impedance | 1MR |
| Interface | USB |
| Max Input Voltage | 400V |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 100V |
| Max Supply Voltage | 240V |
| Min Supply Voltage | 100V |
| Number of Channels | 2 |
| Resistance | 1000000R |
| Resolution | 8b |
| Sampling Rate | 1GS/s |
| Series | 254x |
| Weight | 3.6kg |
| Width | 310mm |
Compliance
| RoHS | Compliant |
Datasheet
B&K Precision BK2542 Datasheet
Download the complete datasheet for B&K Precision BK2542 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

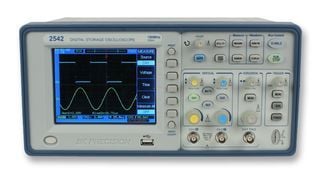

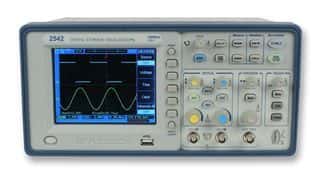

Product Images
