Surface mount PTC resettable fuse with 140mA hold current and 300mA trip current. Features a 60VDC maximum voltage rating, 10A maximum interrupt current, and 0.8W power dissipation. Operates within a -40°C to 85°C temperature range and has a 0.008s time to trip. Packaged in an 1812 SMD case with solder pads, this lead-free and RoHS compliant component is supplied on cut tape.
Package1812
MountingSurface Mount
Quick Jump:
Technical Specifications
BEL 0ZCG0014FF2C technical specifications.
General
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Hold Current | 140mA |
| Lead Free | Lead Free |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | 0ZCG |
| Time to Trip | 8ms |
| Trip Current | 300mA |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCG0014FF2C Datasheet
Download the complete datasheet for BEL 0ZCG0014FF2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

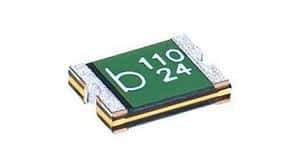

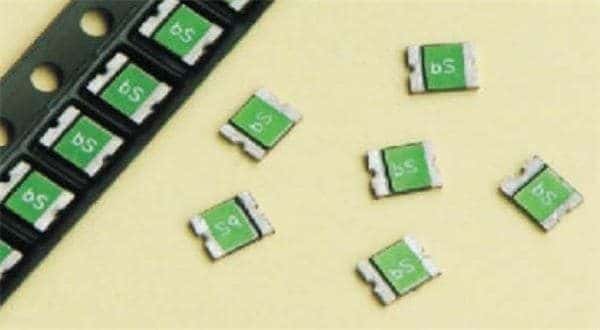

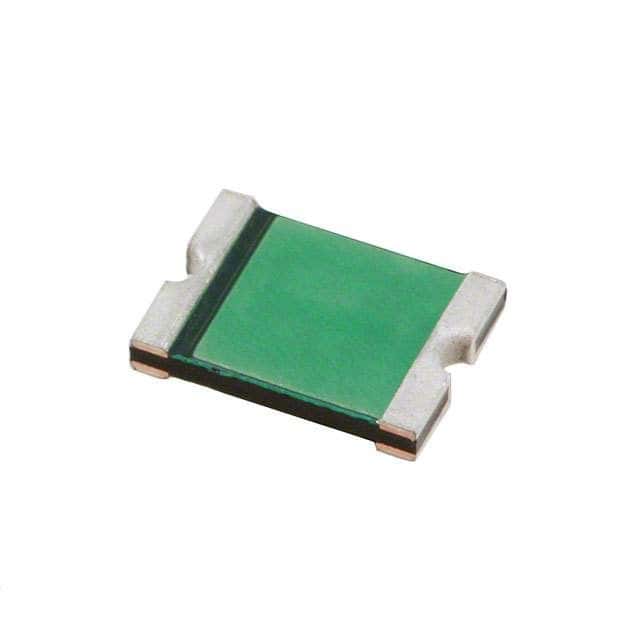

Product Images
