Surface mount PTC resettable fuse with a 30VDC voltage rating and 40A maximum current. Features a 300mA hold current and 600mA trip current, designed for overcurrent protection. Operates within a temperature range of -40°C to 85°C, with a trip time of 0.1 seconds. Packaged in an 1812 (4532 metric) SMD case with solder pads, supplied on tape and reel. This RoHS compliant component offers lead-free construction.
Package1812
Voltage Rating30V
Current Rating40A
Quick Jump:
Technical Specifications
BEL 0ZCG0030FF2C technical specifications.
General
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Current Rating | 40A |
| Height | 700um |
| Hold Current | 300mA |
| Lead Free | Lead Free |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | 0ZCG |
| Time to Trip | 0.1s |
| Trip Current | 600mA |
| Voltage Rating | 30V |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCG0030FF2C Datasheet
Download the complete datasheet for BEL 0ZCG0030FF2C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

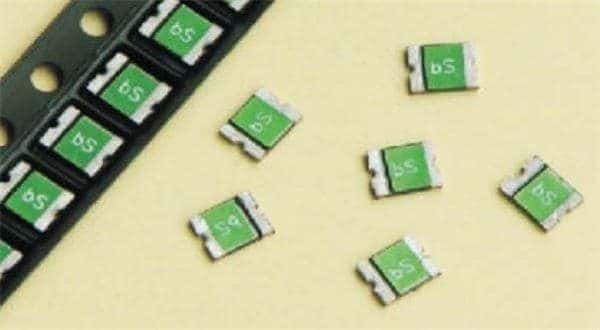

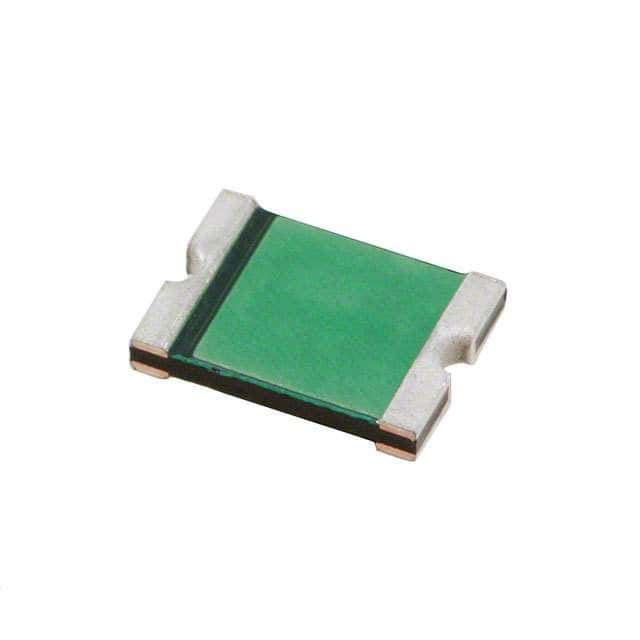

Product Images
