Surface mount PTC thermistor with a 2.6A hold current and 5A trip current, designed for overcurrent protection. Features a 16V DC maximum voltage rating and 1.3W power dissipation. Operates across a wide temperature range of -40°C to 85°C. Approved by UL and TUV, this lead-free component is supplied in 1812 (4532) case code packaging.
Package1812
MountingSurface Mount
Power1.3W
Quick Jump:
Technical Specifications
BEL 0ZCG0260BF2B technical specifications.
General
| Approvals | UL, TUV |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Contact Plating | Tin, Matte |
| Hold Current | 2.6A |
| Lead Free | Lead Free |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 16V |
| Moisture Sensitivity Level | 2A |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Power Dissipation | 1.3W |
| RoHS Compliant | Yes |
| Series | 0ZCG |
| Time to Trip | 5s |
| Trip Current | 5A |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCG0260BF2B Datasheet
Download the complete datasheet for BEL 0ZCG0260BF2B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

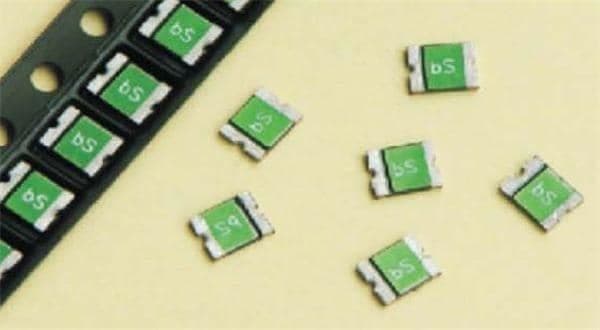

Product Images
