Surface mount PTC resettable fuse featuring a 500mA hold current and 1A trip current. Rated for 16VDC maximum, this component offers a 100A maximum interrupt current and 600mW power dissipation. Designed for automotive applications, it operates within a temperature range of -40°C to 85°C and is supplied in a 1210 (3225 metric) package on tape and reel. Lead-free and RoHS compliant, it boasts UL and TUV approvals.
Package1210
MountingSurface Mount
Power600mW
Quick Jump:
Technical Specifications
BEL 0ZCH0050FF2G technical specifications.
General
| Approvals | UL, TUV |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Hold Current | 500mA |
| Lead Free | Lead Free |
| Length | 3.43mm |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 16V |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Power Dissipation | 600mW |
| RoHS Compliant | Yes |
| Series | 0ZCH |
| Time to Trip | 100ms |
| Trip Current | 1A |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCH0050FF2G Datasheet
Download the complete datasheet for BEL 0ZCH0050FF2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

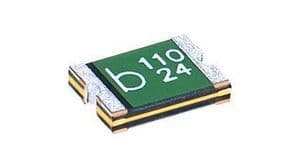

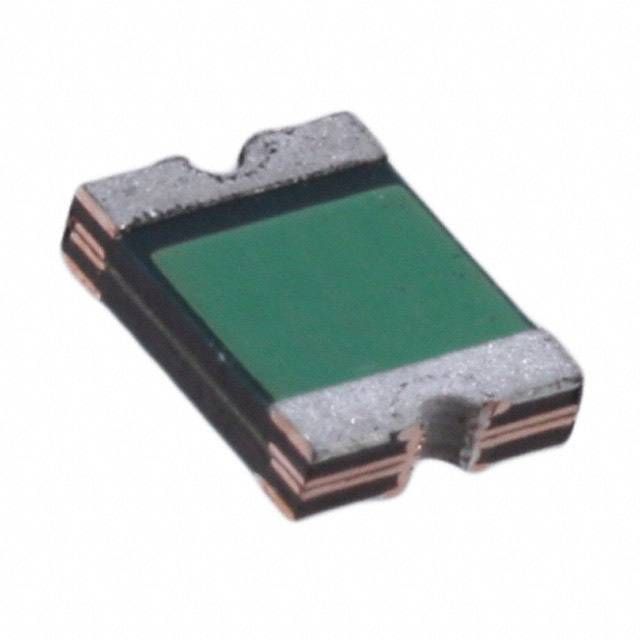

Product Images
