Surface mount PTC resettable fuse with a 100mA hold current and 250mA trip current. Features a 60VDC maximum voltage rating and 10A maximum current rating. Dissipates 400mW with a resistance of 1.6 Ohms. Operates within a temperature range of -40°C to 85°C. Packaged in a 1206 SMD case with tin, matte contact plating, suitable for automotive applications.
Package1206
Resistance1.6R
Voltage Rating60V
Current Rating10A
Quick Jump:
Technical Specifications
BEL 0ZCJ0010FF2E technical specifications.
General
| Approvals | UL, TUV |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Contact Plating | Tin, Matte |
| Current Rating | 10A |
| Height | 850um |
| Hold Current | 100mA |
| Lead Free | Lead Free |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 60V |
| Moisture Sensitivity Level | 2A |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Power Dissipation | 400mW |
| Resistance | 1.6R |
| RoHS Compliant | Yes |
| Series | 0ZCJ |
| Time to Trip | 1s |
| Trip Current | 250mA |
| Voltage Rating | 60V |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCJ0010FF2E Datasheet
Download the complete datasheet for BEL 0ZCJ0010FF2E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

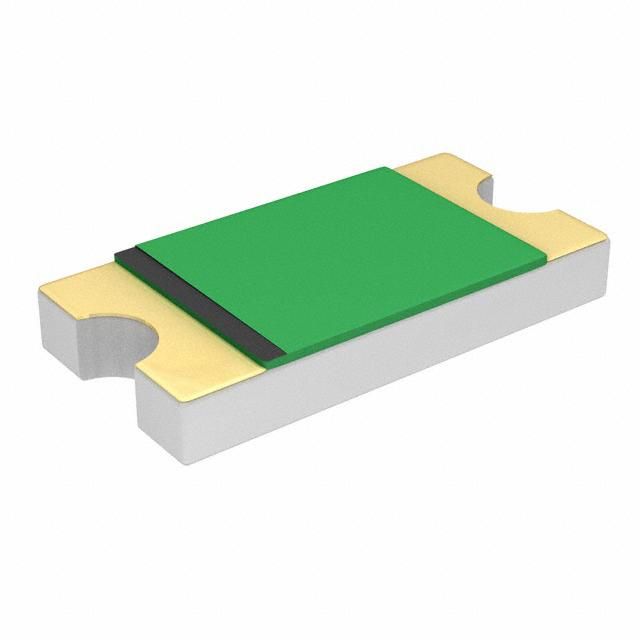

Product Images
