Surface mount PTC resettable fuse with a 48VDC voltage rating and 10A maximum current. Features a 120mA hold current and 390mA trip current, with a time to trip of 0.2 seconds. Encased in a 1206 (3216 metric) SMD package, this lead-free and RoHS compliant component operates between -40°C and 85°C.
Package1206
Voltage Rating48V
Current Rating10A
Quick Jump:
Technical Specifications
BEL 0ZCJ0012FF2E technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Current Rating | 10A |
| Height | 850um |
| Hold Current | 120mA |
| Lead Free | Lead Free |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | 0ZCJ |
| Time to Trip | 0.2s |
| Trip Current | 390mA |
| Voltage Rating | 48V |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCJ0012FF2E Datasheet
Download the complete datasheet for BEL 0ZCJ0012FF2E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

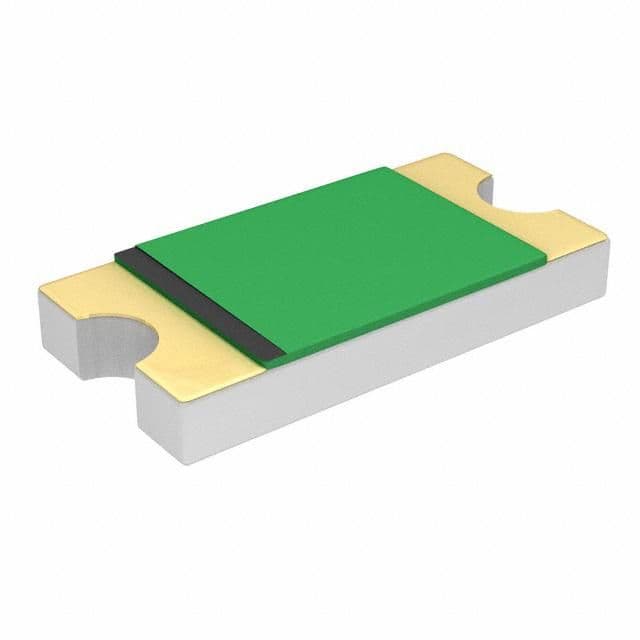

Product Images
