Surface mount PTC thermistor, 1206 case code (3216 metric), designed for general applications. Features a hold current of 250mA and a trip current of 500mA, with a maximum current rating of 40A. Operates within a temperature range of -40°C to 85°C. This lead-free, RoHS compliant component is supplied in cut tape packaging.
Package1206
MountingSurface Mount
Quick Jump:
Technical Specifications
BEL 0ZCJ0025AF2E technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Hold Current | 250mA |
| Lead Free | Lead Free |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | 0ZCJ |
| Time to Trip | 80ms |
| Trip Current | 500mA |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCJ0025AF2E Datasheet
Download the complete datasheet for BEL 0ZCJ0025AF2E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

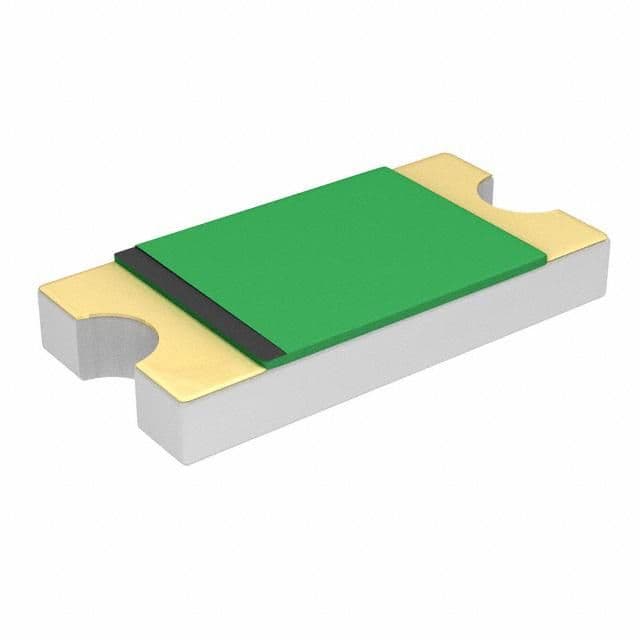

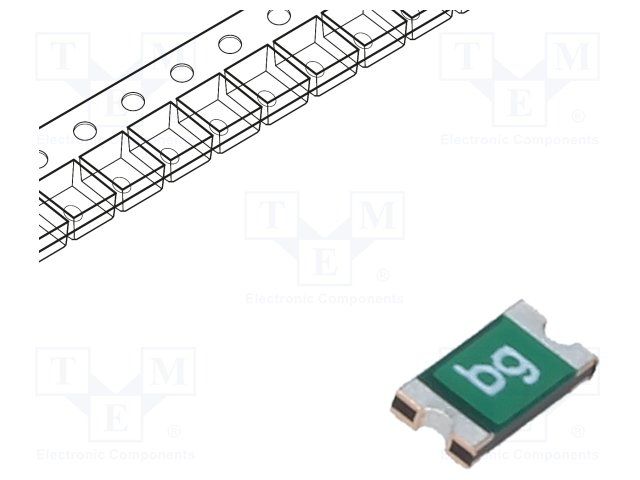

Product Images
