Surface mount PTC thermistor, 1206 package, featuring a hold current of 350mA and a trip current of 750mA. This component offers a maximum DC voltage rating of 30V and a maximum current rating of 40A, with a power dissipation of 600mW. Operating temperature range is -40°C to 85°C. Approvals include UL and TUV, and it is RoHS compliant and lead-free.
Package1206
MountingSurface Mount
Power600mW
Quick Jump:
Technical Specifications
BEL 0ZCJ0035AF2E technical specifications.
General
| Approvals | UL, TUV |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Contact Plating | Tin, Matte |
| Hold Current | 350mA |
| Lead Free | Lead Free |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Moisture Sensitivity Level | 2A |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Power Dissipation | 600mW |
| RoHS Compliant | Yes |
| Series | 0ZCJ |
| Time to Trip | 100ms |
| Trip Current | 750mA |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCJ0035AF2E Datasheet
Download the complete datasheet for BEL 0ZCJ0035AF2E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

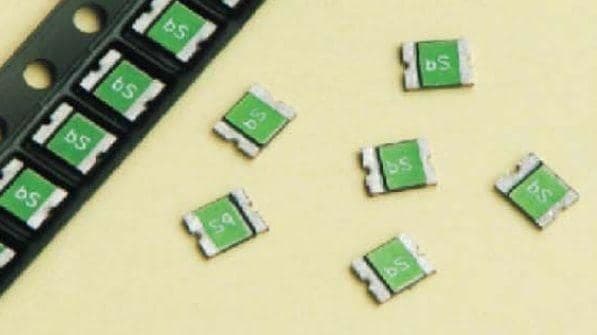

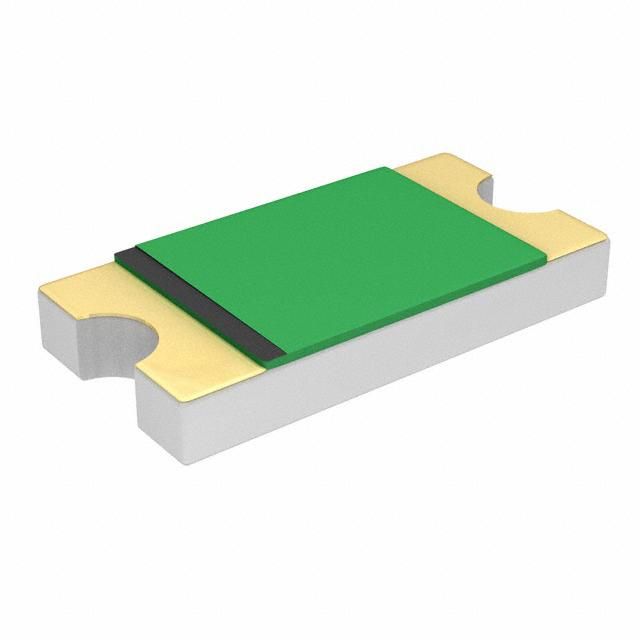

Product Images
