Surface mount PTC thermistor, 0805 case code (2012 metric), featuring tin, matte contact plating. Rated for 200mA hold current and 500mA trip current with a 20ms time to trip. Operates within a -40°C to 85°C temperature range, with a maximum DC voltage rating of 9V and a maximum current rating of 100A. This lead-free, RoHS compliant component boasts 500mW power dissipation and AEC-Q200 ratings, with UL and TUV approvals.
Package0805
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
BEL 0ZCK0020FF2G technical specifications.
General
| Approvals | UL, TUV |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Contact Plating | Tin, Matte |
| Hold Current | 200mA |
| Lead Free | Lead Free |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 9V |
| Moisture Sensitivity Level | 2A |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Power Dissipation | 500mW |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | 0ZCK |
| Time to Trip | 20ms |
| Trip Current | 500mA |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCK0020FF2G Datasheet
Download the complete datasheet for BEL 0ZCK0020FF2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

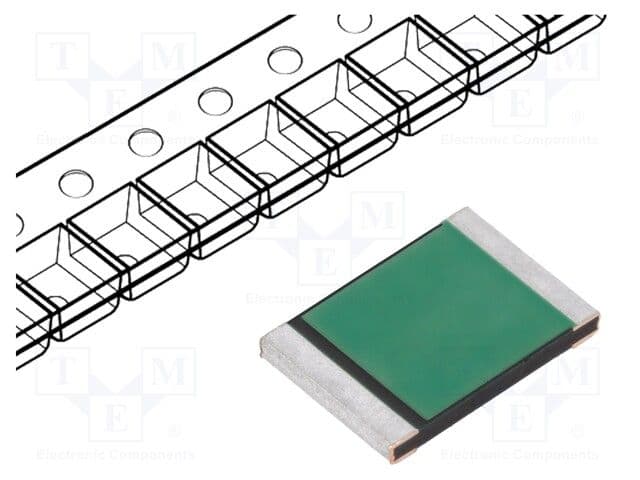

Product Images
