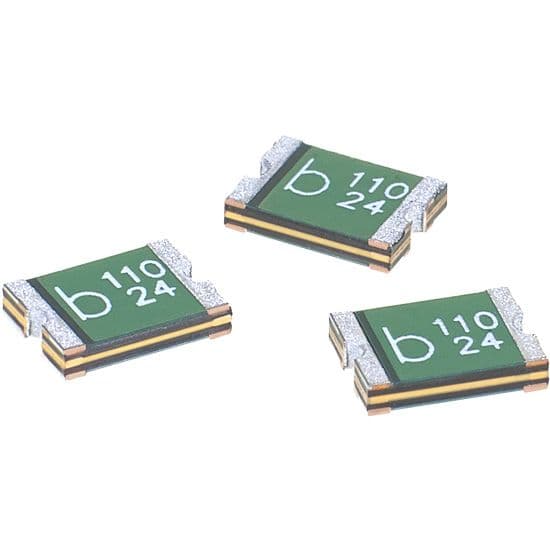

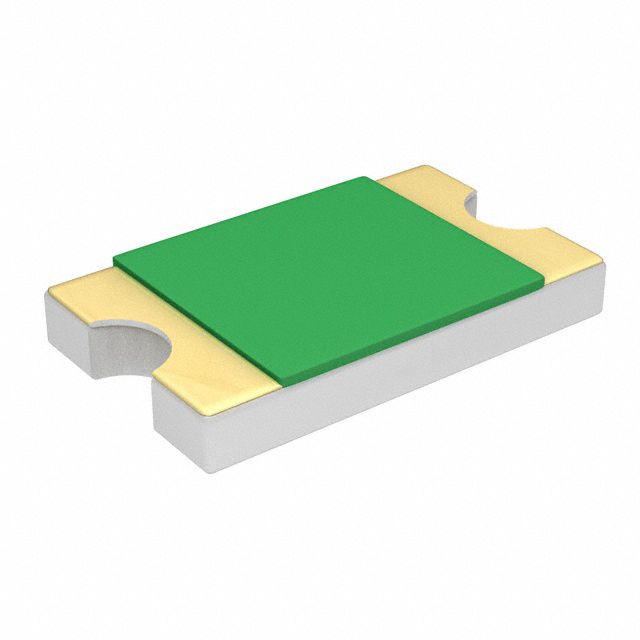

Surface mount PTC thermistor, 0805 package, featuring a 6V voltage rating and 500mA hold current. Designed for general applications, this component offers a 1A trip current and a 100ms time to trip. It operates within a temperature range of -40°C to 85°C, with a maximum current rating of 100A. Lead-free and RoHS compliant, it is supplied in cut tape packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the BEL 0ZCK0050FF2E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Current Rating | 100A |
| Height | 1.25mm |
| Hold Current | 500mA |
| Lead Free | Lead Free |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | 0ZCK |
| Time to Trip | 100ms |
| Trip Current | 1A |
| Voltage Rating | 6V |
| RoHS | Compliant |
Download the complete datasheet for BEL 0ZCK0050FF2E to view detailed technical specifications.
