Surface mountable resettable fuse with a 15V DC maximum voltage rating and 80mA hold current. Features a 200mA trip current and 40A maximum current rating, with a power dissipation of 500mW. Operates within a temperature range of -40°C to 85°C and is housed in a 0603 (1608 metric) package with tin, matte contact plating. UL and TUV approved, lead-free, and RoHS compliant.
Package0603
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
BEL 0ZCM0008FF2G technical specifications.
General
| Approvals | UL, TUV |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Contact Plating | Tin, Matte |
| Hold Current | 80mA |
| Lead Free | Lead Free |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 15V |
| Moisture Sensitivity Level | 2A |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Power Dissipation | 500mW |
| RoHS Compliant | Yes |
| Series | 0ZCM |
| Time to Trip | 100ms |
| Trip Current | 200mA |
Compliance
| RoHS | Compliant |
Datasheet
BEL 0ZCM0008FF2G Datasheet
Download the complete datasheet for BEL 0ZCM0008FF2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

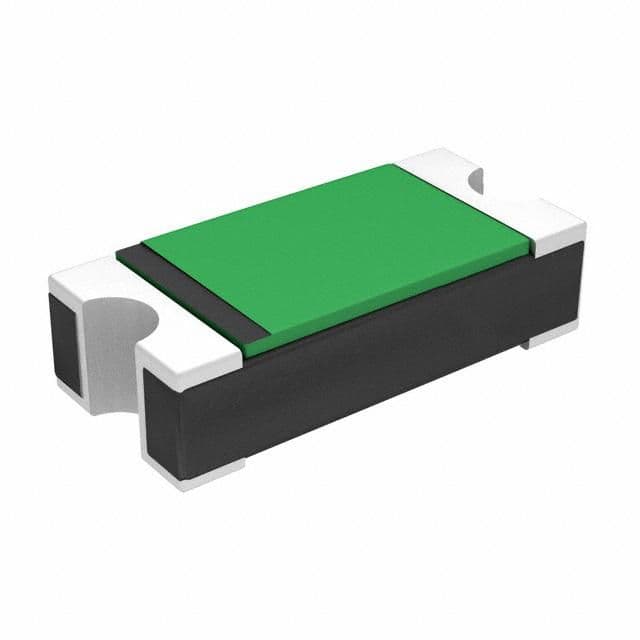

Product Images
