The BEL C1Q5 is a surface mount PTC resettable fuse rated for 5A and 63V DC. It has a maximum power dissipation of 960mW and is available in the 1206 package. Operating temperature range is from -55°C to 125°C. The C1Q5 is compliant with RoHS regulations and is suitable for use in surface mount applications.
Package1206
Resistance21mR
Voltage Rating125V
Current Rating5A
Quick Jump:
Technical Specifications
BEL C1Q5 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Contact Plating | Tin |
| Current Rating | 5A |
| DC Cold Resistance | 22mR |
| Depth | 1.52mm |
| Lead Free | Lead Free |
| Length | 3.07mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 63V |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Power Dissipation | 960mW |
| Resistance | 21mR |
| RoHS Compliant | Yes |
| Series | C1Q |
| Voltage Rating | 125V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
BEL C1Q5 Datasheet
Download the complete datasheet for BEL C1Q5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

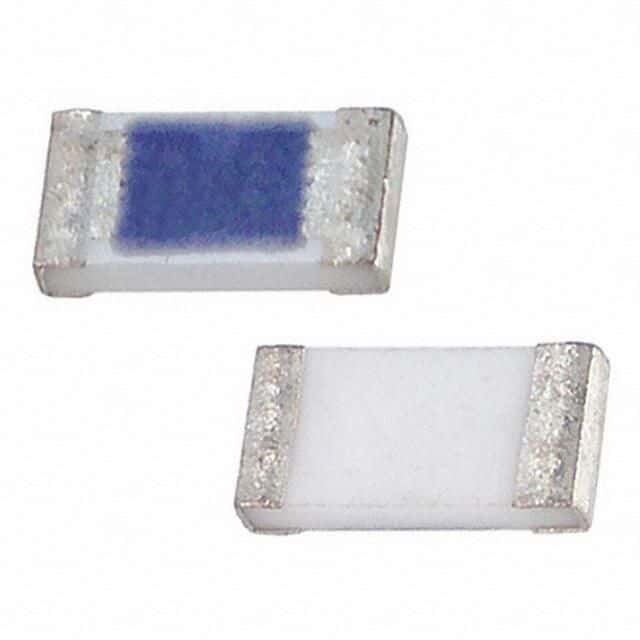

Product Images
