General purpose power transformer, 10VA rating, 4000Vrms isolation. Features dual primary and single secondary windings with PC pin termination for through-hole mounting. Maximum output current is 420mA. Dimensions include a width of 39.7mm, length of 47.6mm, and a seated height of 34.9mm. RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
BEL CL2-10R-24 technical specifications.
General
| Height - Seated (Max) | 34.9mm |
| Length | 47.6mm |
| Max Output Current | 420mA |
| Mount | Through Hole |
| Package Quantity | 50 |
| Primary Winding(s) | Dual |
| RoHS Compliant | Yes |
| Secondary Winding(s) | Single |
| Series | CL2 |
| Termination | PC Pin |
| Weight | 0.53lb |
| Width | 39.7mm |
Compliance
| RoHS | Compliant |
Datasheet
BEL CL2-10R-24 Datasheet
Download the complete datasheet for BEL CL2-10R-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

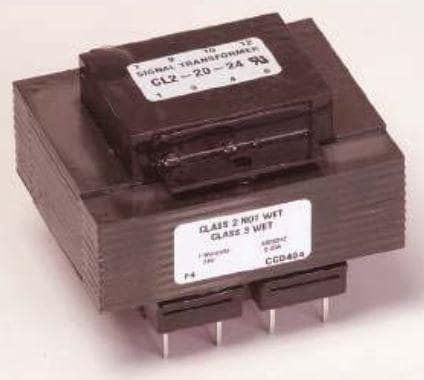

Product Images
