250W, 4-output, board-mount DC-DC converter module featuring 5V/25A, 3.3V/20A, 12V/4A, and -12V outputs. This hybrid power supply offers 250W maximum power dissipation, 82.6% efficiency, and 1.5kV isolation voltage. Operating temperature range is -25°C to 50°C. The module is RoHS compliant and lead-free, with dimensions of 162.5mm (L) x 128.7mm (W) x 40.6mm (H) and a weight of 800g.
MountingRack
Power250W
Quick Jump:
Technical Specifications
BEL CPA250-4530G technical specifications.
General
| Current - Output 1 | 25A |
| Current - Output 2 | 20A |
| Current - Output 3 | 4A |
| Depth | 128.7mm |
| Efficiency | 82.6% |
| Height | 40.6mm |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 162.5mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 2A |
| Max Power Dissipation | 250W |
| Mount | Rack |
| Number of Outputs | 4 |
| Output Current | 40A |
| Output Power | 250W |
| Output Voltage | 5V |
| Package Quantity | 20 |
| RoHS Compliant | Yes |
| Series | Melcher CPA (250W) |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Weight | 800g |
| Width | 128.7mm |
Compliance
| RoHS | Compliant |
Datasheet
BEL CPA250-4530G Datasheet
Download the complete datasheet for BEL CPA250-4530G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

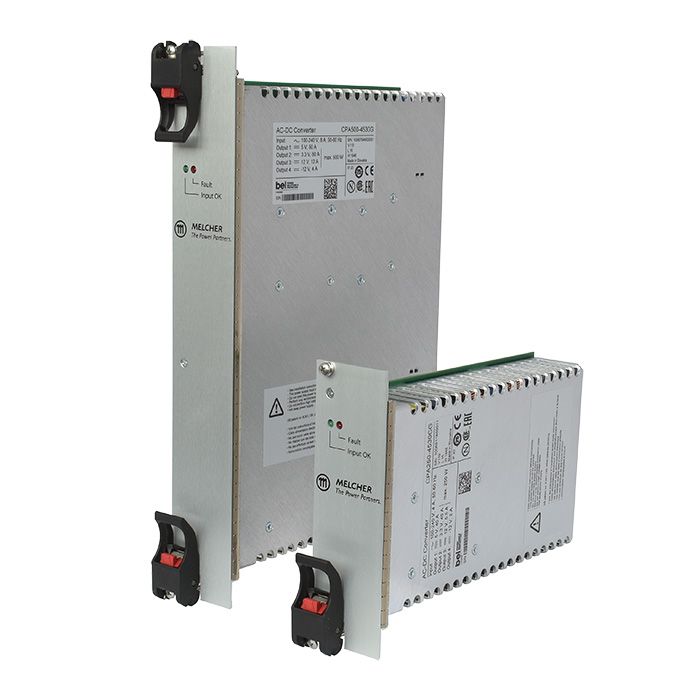

Product Images
