Isolated DC-DC converter module, 15V output voltage, 700mA output current, delivering 10W of regulated power. Features a wide input voltage range of 18V to 36V, 86% efficiency at 220kHz switching frequency, and 700V isolation voltage. Operates across a wide temperature range from -40°C to 90°C. Designed for through-hole PCB mounting with a hybrid construction.
Frequency220kHz
PackageModule
MountingThrough Hole, PCB
Power10W
Quick Jump:
Technical Specifications
BEL DFC10E24S15 technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 700mA |
| Depth | 25.91mm |
| Efficiency | 86% |
| Frequency | 220kHz |
| Height | 0.42inch |
| Isolation | Isolated |
| Isolation Voltage | 700V |
| Lead Free | Contains Lead |
| Length | 51.31mm |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 700mA |
| Max Power Dissipation | 10W |
| Mount | Through Hole, PCB |
| Number of Outputs | 1 |
| Output Current | 700mA |
| Output Power | 10W |
| Output Voltage | 15V |
| Package Quantity | 300 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DFC10 |
| Voltage - Output 1 | 15V |
| Weight | 28g |
| Width | 1.02inch |
Compliance
| RoHS | Compliant |
Datasheet
BEL DFC10E24S15 Datasheet
Download the complete datasheet for BEL DFC10E24S15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

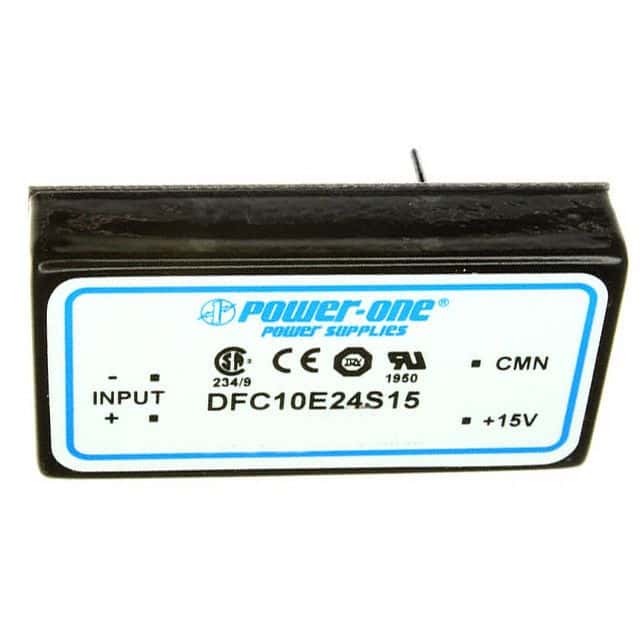

Product Images
