Surface mountable datacom transformer for 10/100 BASE-T applications. Features a 1CT:1CT turns ratio and 350µH inductance. Offers -1dB insertion loss and -12dB return loss. Operates within a -40°C to 85°C temperature range. Packaged in tape and reel, this RoHS compliant module has dimensions of 12.32mm (L) x 7.24mm (W) x 5.71mm (H).
PackageModule
MountingSurface Mount
Inductance350uH
Quick Jump:
Technical Specifications
BEL S558-5999-Z5-F technical specifications.
General
| Package/Case | Module |
| Depth | 9.53mm |
| Height | 5.71mm |
| Inductance | 350uH |
| Insertion Loss | -1dB |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 12.32mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Return Loss | -12dB |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Width | 7.24mm |
Compliance
| RoHS | Compliant |
Datasheet
BEL S558-5999-Z5-F Datasheet
Download the complete datasheet for BEL S558-5999-Z5-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

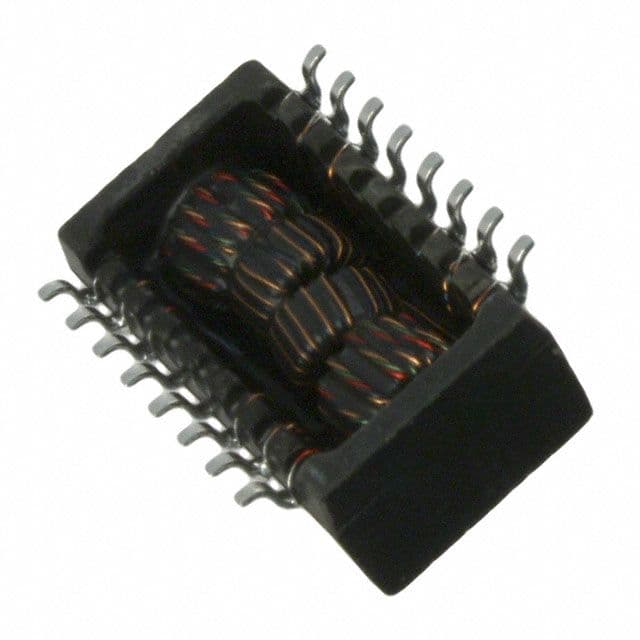

Product Images
