Isolated DC-DC regulated power supply module, 120W output power, 12V single output voltage, and 10A maximum output current. Features include UVLO, OVP, OCP, and OTP protection, with 93% efficiency and 2.25kV isolation voltage. Operates across a -40°C to 85°C temperature range, accepting 36V to 75V input voltage. This through-hole mount module is housed in a 58.42mm x 22.76mm x 9.53mm (2.30" x 0.90" x 0.37") package.
PackageModule
MountingThrough Hole
Power120W
Quick Jump:
Technical Specifications
BEL SQE48T10120-NDA0G technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 10A |
| Depth | 22.76mm |
| Efficiency | 93% |
| Features | UVLO, OVP, OCP, OTP |
| Height | 0.37inch |
| Isolation | Isolated |
| Isolation Voltage | 2.25kV |
| Length | 58.42mm |
| Max Input Voltage | 75V |
| Min Input Voltage | 36V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10A |
| Max Power Dissipation | 120W |
| Mount | Through Hole |
| Nominal Input Voltage | 48V |
| Number of Outputs | 1 |
| Output Current | 10A |
| Output Power | 120W |
| Output Voltage | 12V |
| Package Quantity | 33 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Series | SQE48 |
| Voltage - Output 1 | 12V |
| Width | 0.9inch |
Compliance
| RoHS | Compliant |
Datasheet
BEL SQE48T10120-NDA0G Datasheet
Download the complete datasheet for BEL SQE48T10120-NDA0G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

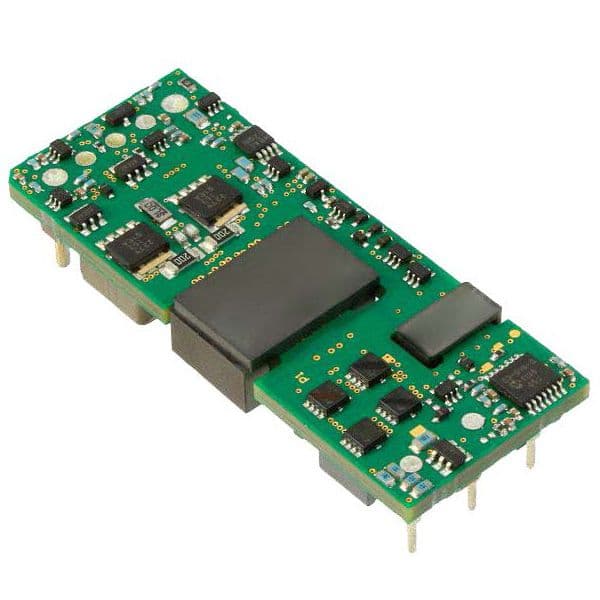

Product Images
