Belling LEE
L1737/BLACK
SOCKET, 2MM; Product Range:-; Gender:Jack; Contact Termination Type:Solder; Current Rating:10A; Voltage Rating:-; Contact Plating:Silver Plated Contacts; Contact Material:Brass; Connector Colour:Black; Connector Mounting:Panel Mount; SVHC:No SVHC (15-Jun-2015); Connector Type:Test Socket; Contact Resistance:3mohm; Contact Termination:Solder; External Length / Height:21mm; Material:PVC/polypropylene; Operating Temperature Max:80°C; Operating Temperature Min:-10°C; Voltage Rating V AC:1.5kV
Current Rating10A
Quick Jump:
Technical Specifications
Belling LEE L1737/BLACK technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Silver |
| Current Rating | 10A |
| Gender | Male |
| Material | PVC, Polypropylene |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -10°C |
| Panel Thickness | 4.7mm |
| Reach SVHC Compliant | No |
| Termination | Solder |
| Voltage Rating (AC) | 1.5kV |
Compliance
| RoHS | Compliant |
Datasheet
Belling LEE L1737/BLACK Datasheet
Download the complete datasheet for Belling LEE L1737/BLACK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

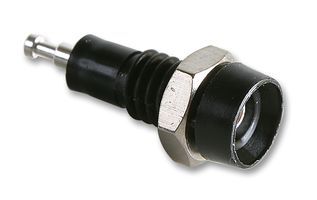

Product Images
