Beta Transformer Technology
TST-9017

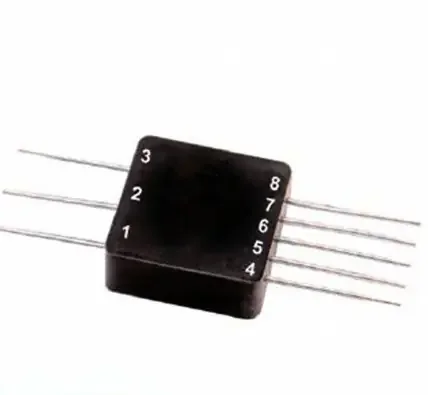

Pulse Transformer, GENERAL PURPOSE Application(s), 1:2.5; 1:1.79,
Pulse Transformer, GENERAL PURPOSE Application(s), 1:2.5; 1:1.79
Quick Jump:
Technical Specifications
Beta Transformer Technology TST-9017 technical specifications.
General
Max Operating Temperature
130
Min Operating Temperature
-55
Width
15.88
Length
15.88
Number of Functions
1
Height
7.11
Output Risetime Max
250 ns
Impedance Min
3,000
Turns Ratio (Np:Ns)
1:2.5; 1:1.79
Terminal Finish
Tin/Lead (Sn/Pb)
Transformer Type
Pulse Transformer
Compliance
RoHS
No
Eccn Code
EAR99
Lead Free
No
REACH
Compliant
Military Spec
False
Datasheet
Beta Transformer Technology TST-9017 Datasheet
Download the complete datasheet for Beta Transformer Technology TST-9017 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
