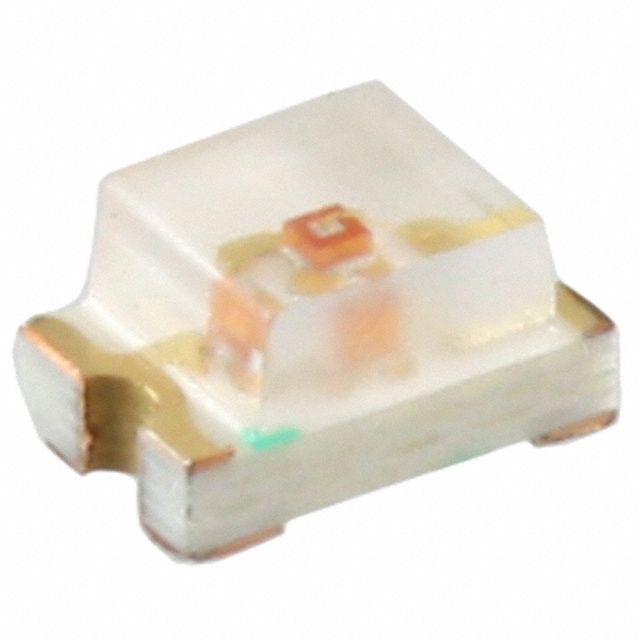

Surface mount optoelectronic device featuring a yellow illumination color and a colorless, flat, rectangular, clear lens. This 2-pin component is housed in an 0805 (2012 metric) case, measuring 2mm in length, 1.2mm in width, and 0.8mm in height. It operates with a forward current of 20mA, a luminous intensity of 70mcd, and a viewing angle of 130° at a wavelength of 588nm. The device is RoHS compliant and suitable for operation between -30°C and 80°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bivar SM0805UYC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Color | Yellow |
| Forward Current | 20mA |
| Height | 0.8mm |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Length | 2mm |
| Lens Color | Colorless |
| Lens Size | 1.2mm |
| Lens Style | Flat, Rectangular, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 70mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Wavelength | 588nm |
| Width | 1.2mm |
| RoHS | Compliant |
