The Block FL52/18 is a 2-output module with a current rating of 1.44A. It measures 86.5mm in length, 49mm in width, and 49mm in height, with a depth of 70mm and a weight of 980g. The module is designed for through-hole mounting and has a maximum operating temperature of 40°C. It meets a flammability rating of UL94 V-0 and has an isolation voltage of 5kV.
Frequency60Hz
Current Rating1.44A
MountingThrough Hole
Quick Jump:
Technical Specifications
Block FL52/18 technical specifications.
General
| Current Rating | 1.44A |
| Depth | 70mm |
| Flammability Rating | UL94 V-0 |
| Height | 49mm |
| Isolation Voltage | 5kV |
| Length | 86.5mm |
| Max Frequency | 60Hz |
| Min Frequency | 50Hz |
| Max Operating Temperature | 40°C |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Reach SVHC Compliant | No |
| Weight | 980g |
| Width | 49mm |
Compliance
| RoHS | Compliant |
Datasheet
Block FL52/18 Datasheet
Download the complete datasheet for Block FL52/18 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

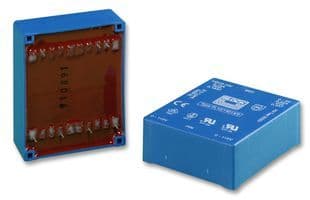

Product Images
