3-pole, 2-electrode gas discharge tube offering 90VDC, 20kADC, and 20AAC surge protection. Features a low 2pF capacitance and 40kA peak pulse current capability. Designed for through-hole mounting with a 4.4mm lead pitch and 1mm lead diameter. Operates across a -40°C to 90°C temperature range. RoHS compliant and UL approved.
PackageRadial
Capacitance2pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Bourns 2026-09-C2LF technical specifications.
General
Approvals
UL
Capacitance
2pF
Package/Case
Radial
Depth
7.9mm
Fail Short
No
Lead Diameter
1mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Length
13mm
Max Operating Temperature
90°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Poles
3
Package Quantity
100
Packaging
Tray
Peak Pulse Current
40kA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
2026
Termination
Radial
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Bourns 2026-09-C2LF Datasheet
Download the complete datasheet for Bourns 2026-09-C2LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

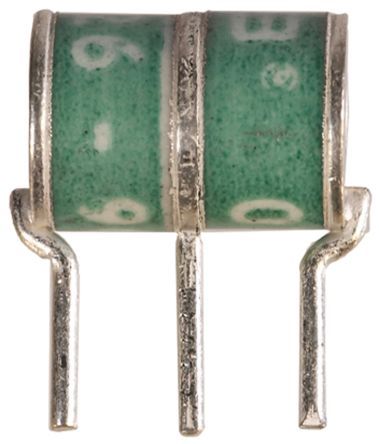

Product Images
