Surface mount surge protection circuit with a 185V voltage rating and 500mA peak pulse current. Features 1pF capacitance and a 3-pole configuration within an SMD/SMT package. Operates across a -40°C to 90°C temperature range and is RoHS compliant. UL approved for reliable protection.
PackageSMD/SMT
Capacitance1pF
Voltage Rating185V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 2030-23T-SM-RPLF technical specifications.
General
| Approvals | UL |
| Capacitance | 1pF |
| Package/Case | SMD/SMT |
| Fail Short | No |
| Length | 7.5mm |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Poles | 3 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 500mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 2030-xxT-SM |
| Termination | SMD/SMT |
| Voltage Rating | 185V |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 2030-23T-SM-RPLF Datasheet
Download the complete datasheet for Bourns 2030-23T-SM-RPLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

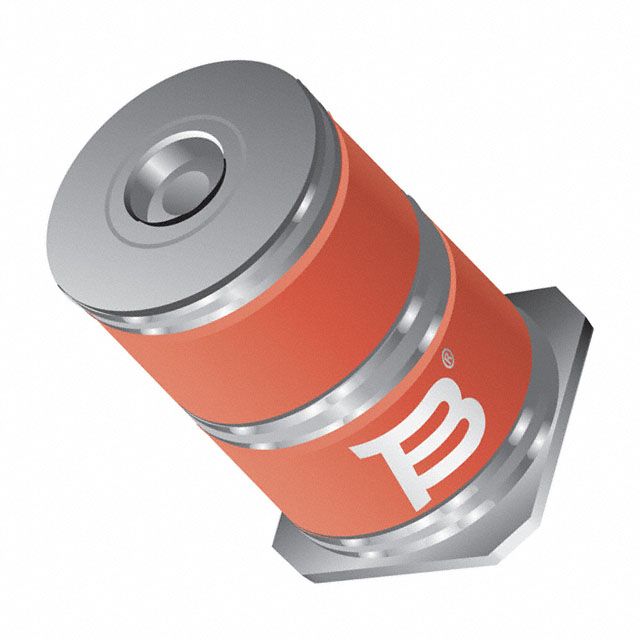

Product Images
