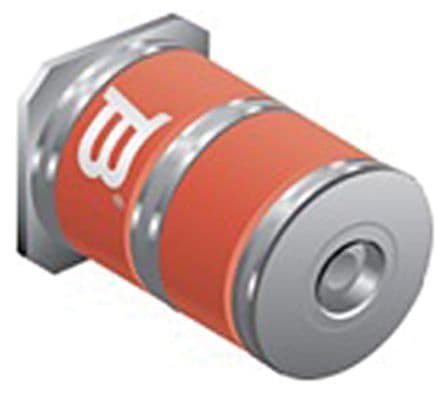

3-electrode Gas Discharge Tube (GDT) offering 360V voltage rating and 420V breakdown voltage. Features 1pF capacitance, surface mount termination with Tin plating, and operates within a -40°C to 90°C temperature range. This UL-approved component is supplied in Tape and Reel packaging, with 1000 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 2030-42T-SM-RPLF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns 2030-42T-SM-RPLF technical specifications.
| Approvals | UL |
| Capacitance | 1pF |
| Package/Case | SMD/SMT |
| Contact Plating | Tin |
| Fail Short | No |
| Length | 7.3mm |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 360V |
| Mount | Surface Mount |
| Number of Poles | 3 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Mini-TRIGARD™ 2030-SM |
| Termination | SMD/SMT |
| Voltage Rating | 360V |
| RoHS | Compliant |
