3-electrode Gas Discharge Tube (GDT) for circuit protection, featuring a 75VDC breakdown voltage and 10kA surge current capability. This SMD/SMT component offers 10A AC current handling and a low 2pF capacitance. Designed for surface mounting with solder pad termination, it operates across a wide temperature range of -55°C to 85°C and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 2036-07-SM-RPLF technical specifications.
General
Approvals
UL
Package/Case
SMD/SMT
Depth
5mm
Fail Short
No
Lead Free
Lead Free
Length
7.3mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Poles
3
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
2036
Termination
SMD/SMT
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Bourns 2036-07-SM-RPLF Datasheet
Download the complete datasheet for Bourns 2036-07-SM-RPLF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

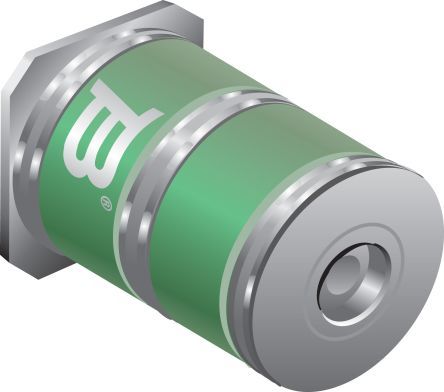

Product Images
