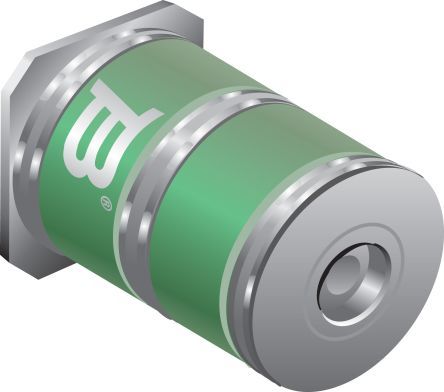

3-pole, 2-electrode gas discharge tube for circuit protection, featuring a 150VDC breakdown voltage, 5kA surge current capability, and 5A AC current rating. This surface mount device offers a low capacitance of 1pF and operates across a wide temperature range from -40°C to 90°C. Packaged in tape and reel for efficient assembly, it provides robust overvoltage and ESD protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 2038-15-SM-RPLF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Depth | 5mm |
| Diameter | 5mm |
| Fail Short | No |
| Lead Pitch | 3.3mm |
| Length | 7.5mm |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Poles | 3 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 10kA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Mini-TRIGARD™ 2038 |
| Termination | SMD/SMT |
| Tolerance | 25% |
| RoHS | Compliant |
Download the complete datasheet for Bourns 2038-15-SM-RPLF to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Bourns 2038-15-SM-RPLF
EMC compliant RS-485 protection circuits using the ADM3485E with Bourns components to meet IEC 61000-4-2, 61000-4-4, and 61000-4-5 standards up to 6 kV surge levels.
