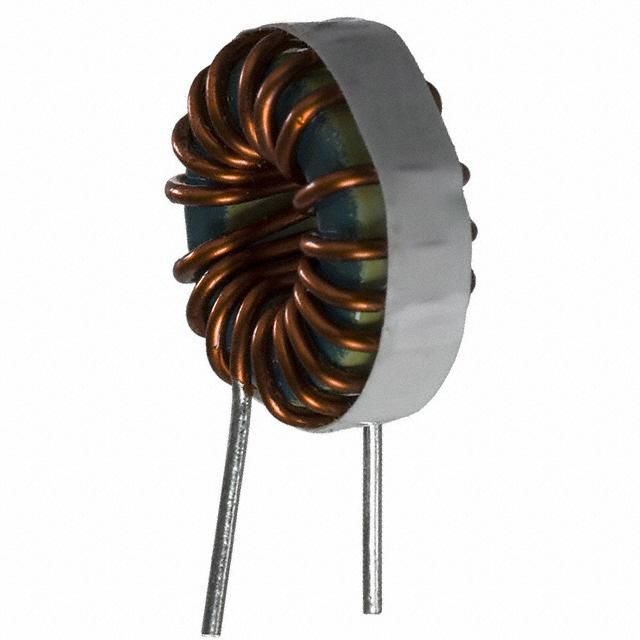

Radial fixed inductor offering 100µH inductance with a 15% tolerance. Features a 4.6A current rating and 53mΩ DC resistance. Designed for through-hole mounting with a radial lead pitch of 8.89mm. Operates across a wide temperature range from -55°C to 200°C. Unshielded construction with radial termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 2100HT-101-V-RC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns 2100HT-101-V-RC technical specifications.
| Package/Case | Radial |
| Current Rating | 4.6A |
| DC Current | 4.6A |
| DC Resistance (DCR) | 53mR |
| Depth | 11.43mm |
| Diameter | 0.86inch |
| Height | 0.86inch |
| Inductance | 100uH |
| Inductance Tolerance | 15% |
| Lead Pitch | 8.89mm |
| Lead/Base Style | Radial |
| Max DC Current | 4.6A |
| Max Operating Temperature | 200°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 154 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 4.6A |
| RoHS Compliant | Yes |
| Series | 2100HT |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 15% |
| Width | 0.45inch |
| RoHS | Compliant |
