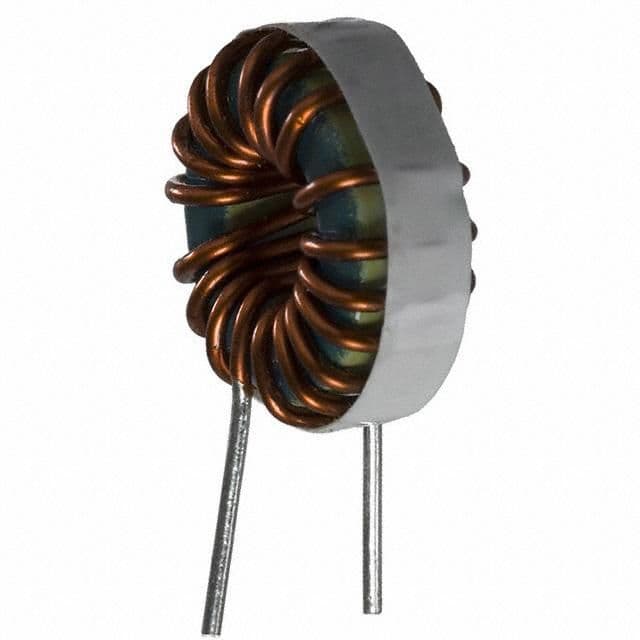

Through-hole radial fixed inductor with 33µH inductance and 15% tolerance, rated for 5A RMS/DC current. Features a low 29mΩ DC resistance (DCR) and operates across a -55°C to 105°C temperature range. This unshielded toroidal component has a radial lead pitch of 8.13mm and tin contact plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 2107-V-RC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns 2107-V-RC technical specifications.
| Package/Case | Radial |
| Contact Plating | Tin |
| Current Rating | 5A |
| DC Current | 5A |
| DC Resistance (DCR) | 29mR |
| Depth | 11.43mm |
| Diameter | 21.84mm |
| Height | 0.86inch |
| Inductance | 33uH |
| Inductance Tolerance | 15% |
| Lead Diameter | 0.86mm |
| Lead Free | Lead Free |
| Lead Pitch | 8.13mm |
| Lead/Base Style | Radial |
| Length | 19.05mm |
| Max DC Current | 5A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Radial |
| Package Quantity | 154 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 5A |
| RoHS Compliant | Yes |
| Series | 2100 |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 15% |
| Width | 0.45inch |
| RoHS | Compliant |
