Radial-mount general purpose inductor with 470µH inductance and 15% tolerance. Features a 1.6A current rating, 280mΩ DCR, and operates from -55°C to 105°C. This unshielded, through-hole component has tin contact plating and a lead pitch of 8.89mm. RoHS compliant and lead-free.
PackageRadial
Current Rating1.6A
MountingThrough Hole, Radial
Inductance470uH
Quick Jump:
Technical Specifications
Bourns 2120-V-RC technical specifications.
General
| Package/Case | Radial |
| Contact Plating | Tin |
| Current Rating | 1.6A |
| DC Current | 1.6A |
| DC Resistance (DCR) | 280mR |
| Depth | 11.43mm |
| Diameter | 0.86inch |
| Height | 0.45inch |
| Inductance | 470uH |
| Inductance Tolerance | 15% |
| Lead Diameter | 0.56mm |
| Lead Free | Lead Free |
| Lead Pitch | 8.89mm |
| Lead/Base Style | Radial |
| Max DC Current | 1.6A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Radial |
| Package Quantity | 154 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.6A |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 1kHz |
| Series | 2100 |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 15% |
| Width | 0.45inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 2120-V-RC Datasheet
Download the complete datasheet for Bourns 2120-V-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

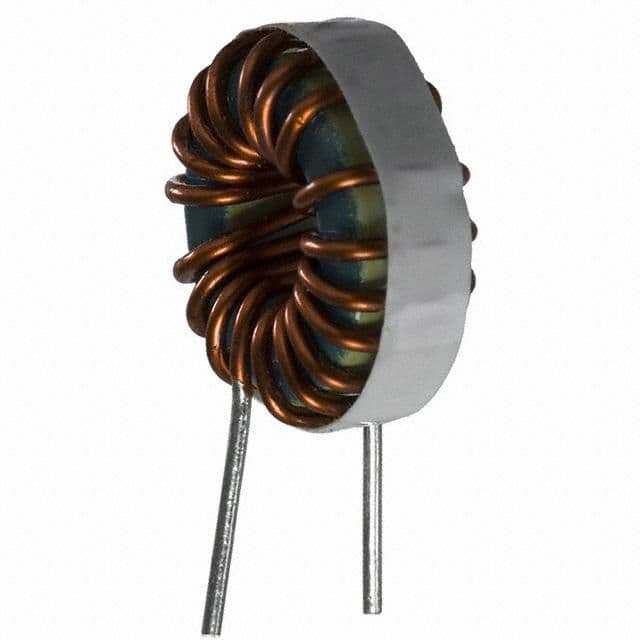

Product Images
