General purpose radial inductor with 10µH inductance and 15% tolerance. Features a ferrite core, 20A current rating, and 5mΩ DCR. Operates from -55°C to 105°C and is RoHS compliant. Radial mounting with tin-plated leads.
PackageRadial
Current Rating20A
MountingThrough Hole, Radial
Inductance10uH
Quick Jump:
Technical Specifications
Bourns 2301-V-RC technical specifications.
General
| Package/Case | Radial |
| Contact Plating | Tin |
| Core Material | Ferrite |
| Current Rating | 20A |
| DC Current | 20A |
| DC Resistance (DCR) | 5mR |
| Depth | 16.51mm |
| Diameter | 32.51mm |
| Height | 16.5mm |
| Inductance | 10uH |
| Inductance Tolerance | 15% |
| Lead Diameter | 1.6764mm |
| Lead Free | Lead Free |
| Lead Pitch | 14.22mm |
| Lead/Base Style | Radial |
| Max DC Current | 20A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Radial |
| Package Quantity | 50 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 20A |
| RoHS Compliant | Yes |
| Series | 2300 |
| Shielding | Unshielded |
| Termination | Through Hole |
| Test Frequency | 1kHz |
| Tolerance | 15% |
| Width | 0.65inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 2301-V-RC Datasheet
Download the complete datasheet for Bourns 2301-V-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

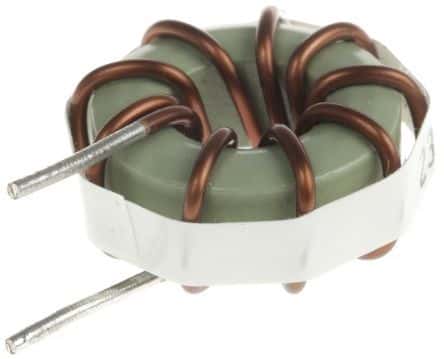

Product Images
