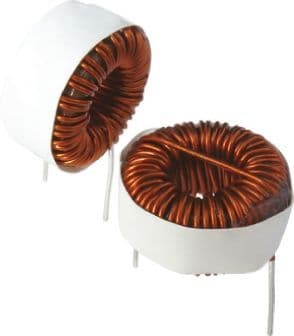

Radial fixed inductor with 47µH inductance and 15% tolerance. Features a ferrite core, 10.7A current rating, and 16mΩ DC resistance. Designed for through-hole mounting with a radial lead style and tin contact plating. Operating temperature range from -55°C to 105°C, with RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns 2309-H-RC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Contact Plating | Tin |
| Core Material | Ferrite |
| Current Rating | 10.7A |
| DC Current | 10.7A |
| DC Resistance (DCR) | 16mR |
| Diameter | 1.28inch |
| Height | 0.65inch |
| Height - Seated (Max) | 0.65inch |
| Inductance | 47uH |
| Inductance Tolerance | 15% |
| Lead Diameter | 1.3462mm |
| Lead Free | Lead Free |
| Lead Pitch | 28.96mm |
| Lead/Base Style | Radial |
| Max DC Current | 10.7A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Radial |
| Package Quantity | 36 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 10.7A |
| RoHS Compliant | Yes |
| Series | 2300 |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 15% |
| Width | 0.65inch |
| RoHS | Compliant |
