Radial-mount, general-purpose fixed inductor featuring 56µH inductance with a 15% tolerance. This unshielded ferrite core component offers a 10.2A current rating and a low 17mΩ DC resistance. Designed for through-hole mounting, it operates across a wide temperature range of -55°C to 105°C and is RoHS compliant with tin-plated contacts.
PackageRadial
Current Rating10.2A
MountingThrough Hole, Radial
Inductance56uH
Quick Jump:
Technical Specifications
Bourns 2310-V-RC technical specifications.
General
| Package/Case | Radial |
| Contact Plating | Tin |
| Core Material | Ferrite |
| Current Rating | 10.2A |
| DC Resistance (DCR) | 17mR |
| Depth | 0.65inch |
| Diameter | 1.28inch |
| Inductance | 56uH |
| Inductance Tolerance | 15% |
| Lead Diameter | 1.3462mm |
| Lead Free | Lead Free |
| Lead Pitch | 13.462mm |
| Lead/Base Style | Radial |
| Max DC Current | 10.2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Radial |
| Package Quantity | 50 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 10.2A |
| RoHS Compliant | Yes |
| Series | 2300 |
| Shielding | Unshielded |
| Termination | Radial |
| Test Frequency | 1kHz |
| Tolerance | 15% |
| Width | 0.65inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 2310-V-RC Datasheet
Download the complete datasheet for Bourns 2310-V-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

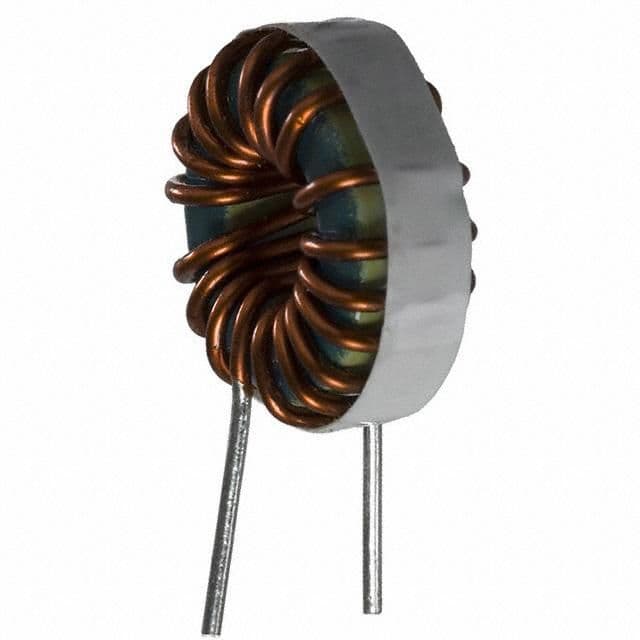

Product Images
