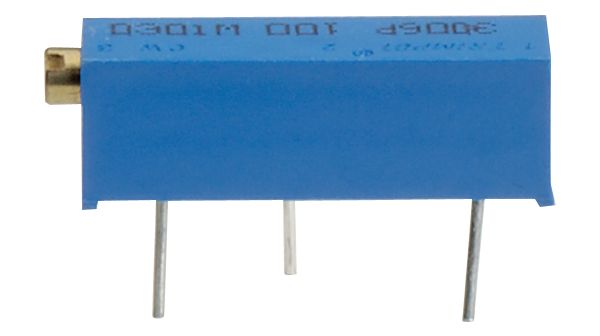

Cermet trimmer potentiometer with 500 ohm resistance and 10% tolerance. Features 0.75W power dissipation, 400V maximum voltage, and a linear resistance law. This through-hole mount component offers 15 turns for precise adjustment and operates within a -55°C to 125°C temperature range. It is RoHS compliant and designed for horizontal actuator orientation with a screw type.
Resistance500R
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns 3006P-1-501LF technical specifications.
General
Actuator Orientation
Horizontal
Actuator Type
SCREW
Color
Blue
Depth
4.83mm
Height
6.35mm
Lead Free
Contains Lead
Length
20.57mm
Manufacturer Series
3006
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
750mW
Military Standard
Not
Mount
Through Hole, Panel, PCB
Number of Turns
15
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
500R
Resistance Law
Linear
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3006
Taper
Linear
Technology
CERMET
Terminal Finish
Tin
Termination
Pin
Thickness
5.59mm
Tolerance
10%
Type
Potentiometer
Weight
0.04oz
Width
4.83mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3006P-1-501LF Datasheet
Download the complete datasheet for Bourns 3006P-1-501LF to view detailed technical specifications.
