Cermet trimmer potentiometer, 0.25W power dissipation, 2kΩ resistance with 10% tolerance. Features a 5-turn linear taper design, 300V voltage rating, and operates across a -65°C to 150°C temperature range. This surface-mount component utilizes J-hook terminations and is packaged on tape and reel.
PackageSMD/SMT
Resistance2kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3214W-1-202E technical specifications.
General
Package/Case
SMD/SMT
Color
Natural
Depth
3.9mm
Height
3.5mm
Lead Free
Lead Free
Length
4.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
250mW
Military Standard
Not
Mount
Surface Mount
Number of Turns
5
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
2kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
Trimpot® 3214 - Sealed
Taper
Linear
Technology
CERMET
Termination
J-Hook
Thickness
5.59mm
Tolerance
10%
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.01oz
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3214W-1-202E Datasheet
Download the complete datasheet for Bourns 3214W-1-202E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

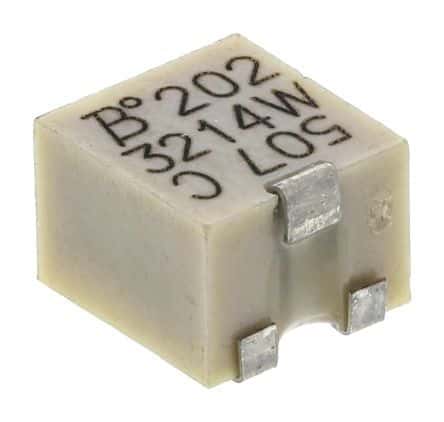

Product Images
