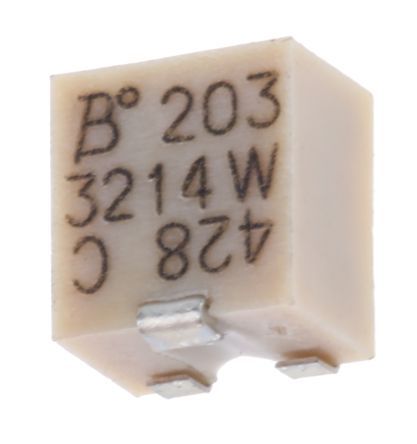

Cermet trimmer potentiometer, 0.25W power rating, 20kΩ resistance with 10% tolerance. Features a linear taper, 5 turns, and a 300V voltage rating. Surface mountable with J-hook terminations, this component operates within a -65°C to 150°C temperature range. Packaged in tape and reel, it is RoHS compliant.
PackageSMD/SMT
Resistance20kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3214W-1-203E technical specifications.
General
Package/Case
SMD/SMT
Color
Natural
Depth
3.9mm
Height
3.5mm
Lead Free
Lead Free
Length
4.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
250mW
Military Standard
Not
Mount
Surface Mount
Number of Turns
5
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
20kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3214
Taper
Linear
Technology
CERMET
Termination
J-Hook
Thickness
5.59mm
Tolerance
10%
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.283g
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3214W-1-203E Datasheet
Download the complete datasheet for Bourns 3214W-1-203E to view detailed technical specifications.
